Solid ink coding machine

Solid ink coding machine

모델:MY-380

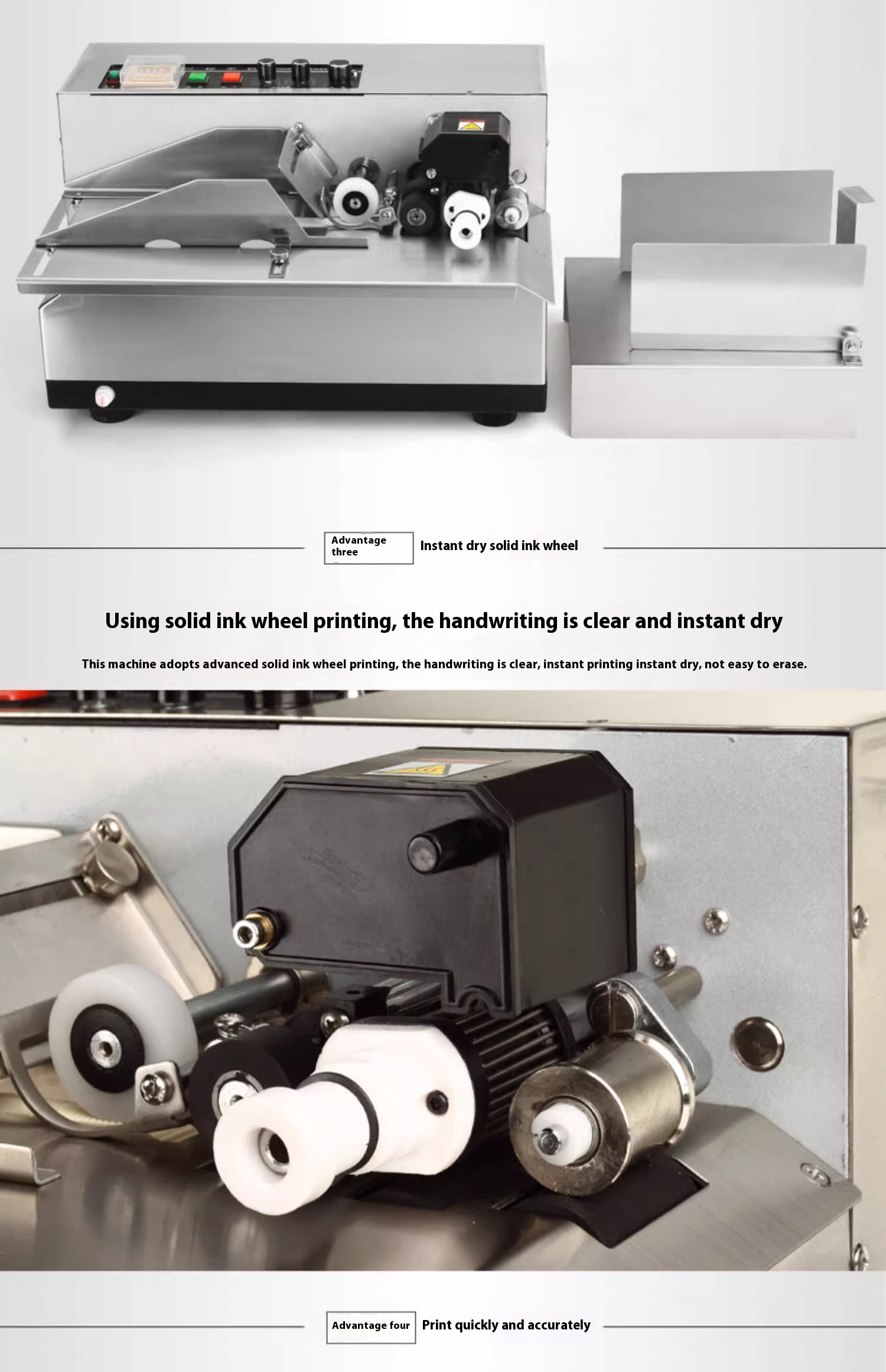

solid ink coding machine is a device used to print production date, batch number and other identification on the surface of flat objects such as aluminum foil, plastic bags, paper boxes, etc. Its models include SYM160-F, mainly used for packaging coding requirements in industries such as food, medicine, daily chemical, and hardware [1] [3] [5]. This device adopts solid ink wheel technology, which has the characteristics of instant printing and drying, and is not easy to erase. It is suitable for non absorbent materials such as plastic film, metal foil, and paper packaging [2] [7-8]. The whole machine adopts a fully stainless steel structure and is equipped with a photoelectric control system. It supports automatic splitting, automatic counting, and preset printing functions, with a maximum printing speed of ≤ 300 times/minute

문의 보내기

제품 설명

description

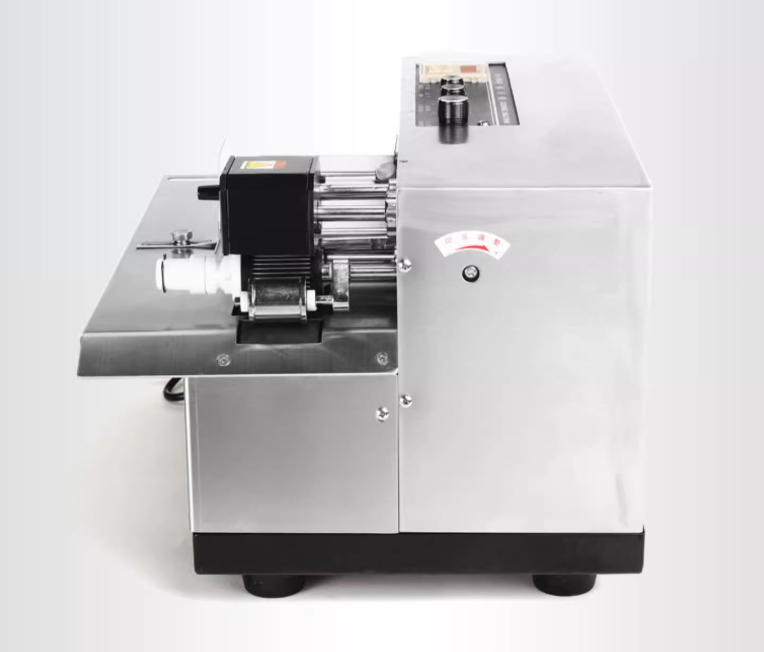

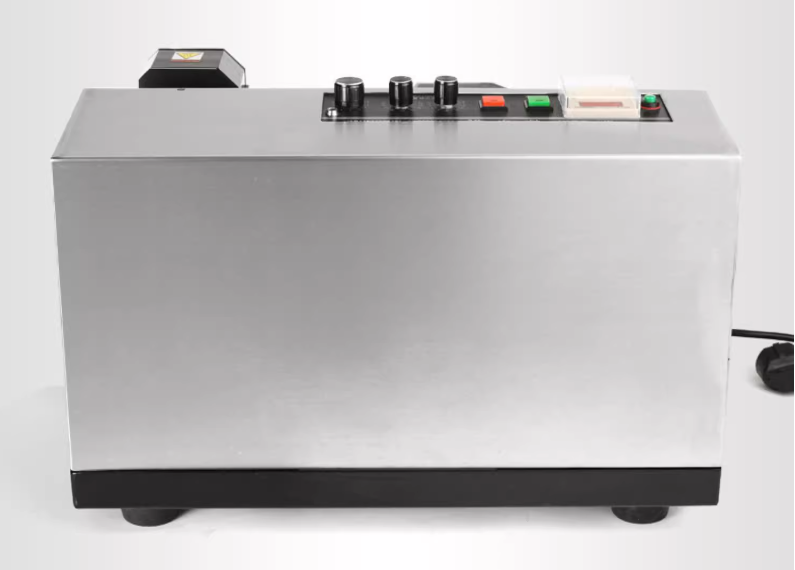

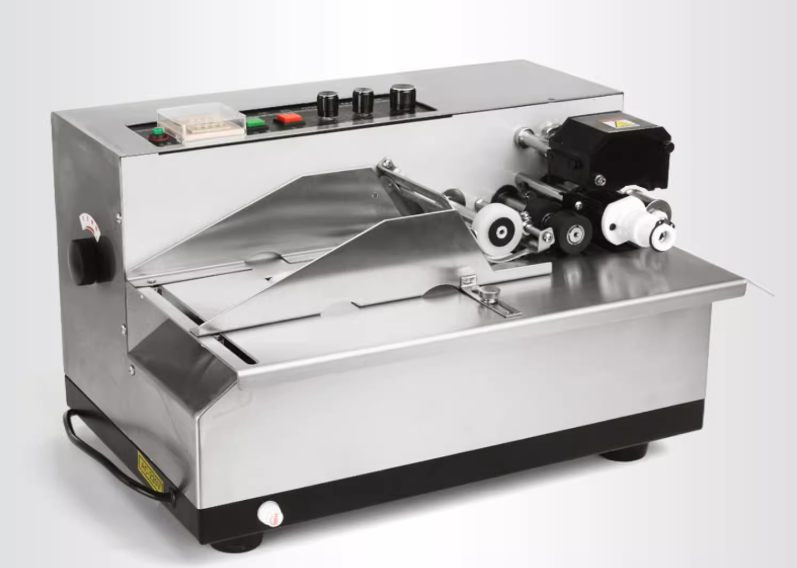

Solid ink coding machine is automatic and desktop type, it use solid Ink roller to print date and batch number.It can print on Plastics/ paper/ card/ box/ packagings, etc.
MY-380F solid-ink coding machine is used for printing lot number, batch number and date code on the sheet of label, paper box, nonferrous plastic film, flexible bag, hard-card, paper etc. Adopts photoelectrical integrated technology to print nicety,machine can dispatch, print and count automatically.

Can be adjustable as per Printing position and your products’ size. It adopts environmental protection solid-ink to print, and have 6 colors ink roller (black, red, yellow, green, white and blue) for option, it can customize bigger size machine as per clients products and choose Stainless Steel material.

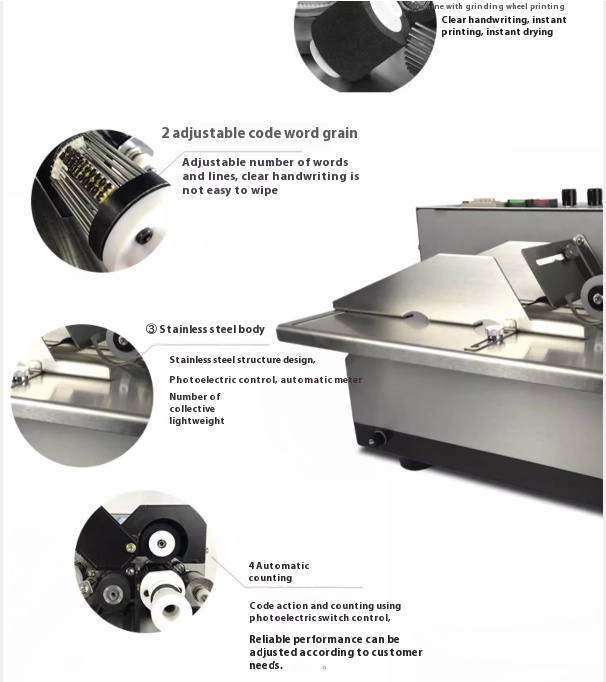

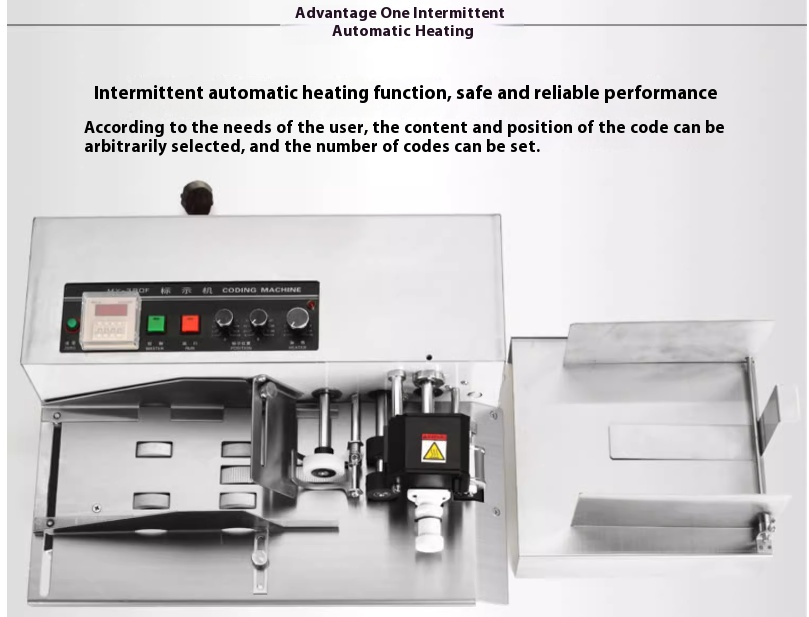

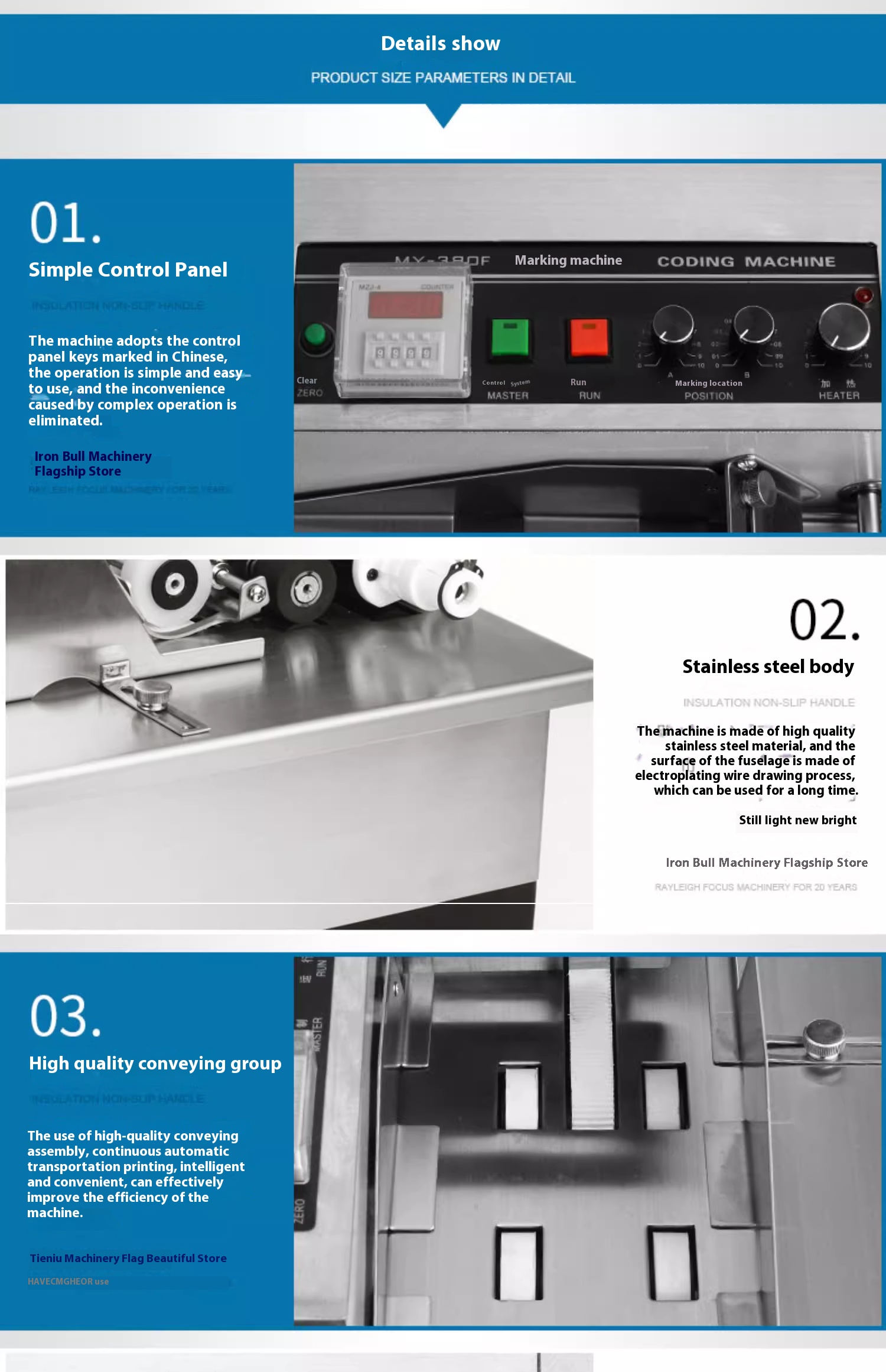

1. With features of automatically counting, paging, temperature controlling, high speed and high efficiency.

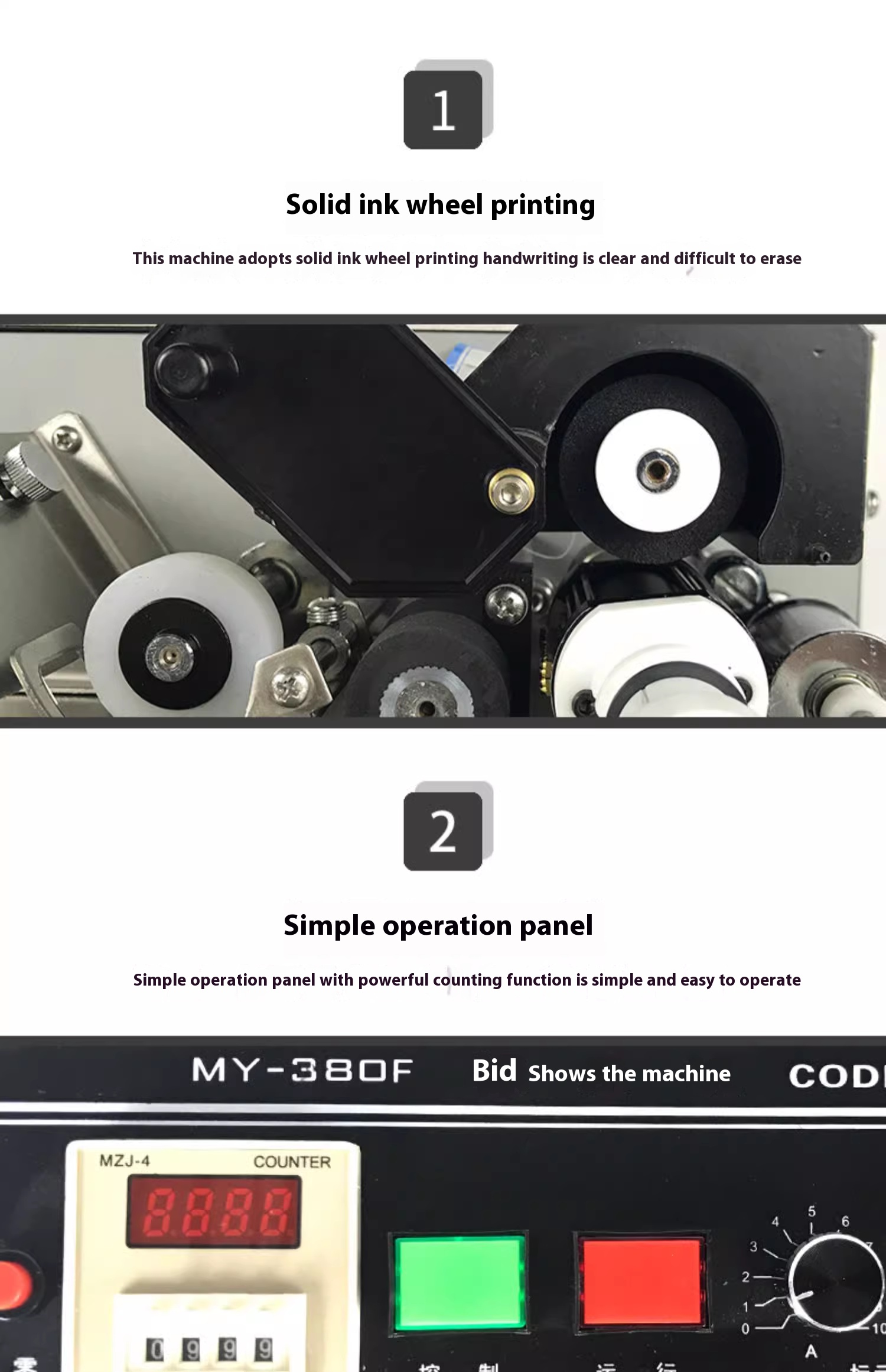

2. Adopts solid ink roll, lower in costs and the printout is clear and with good adhesion.

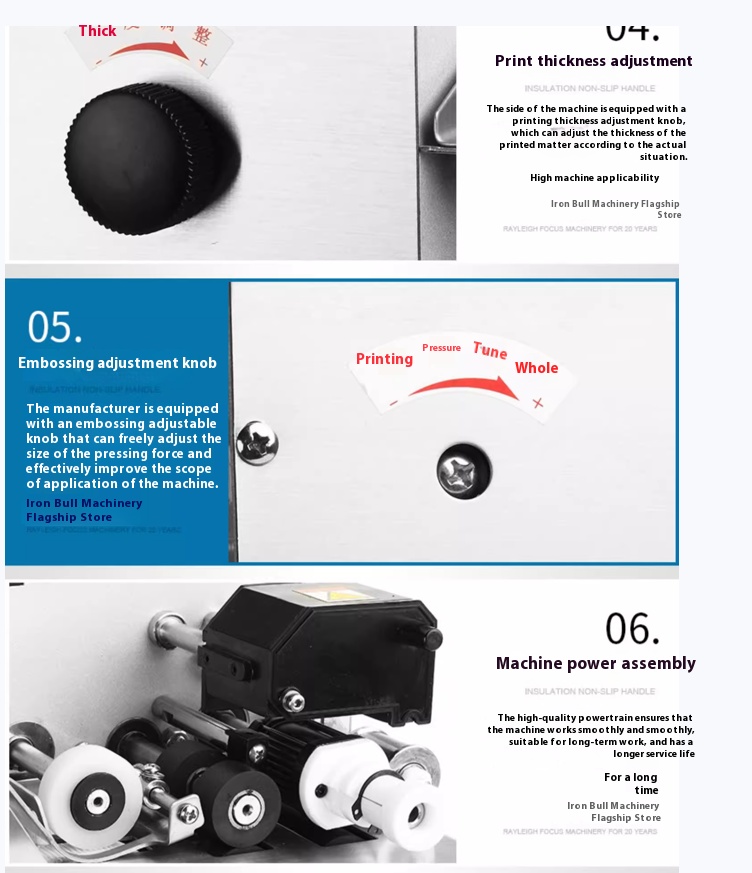

3. Printing position can be adjusted flexibly; the number of printed pages can be known clearly.




Specification of MY-380F solid-ink coding machine



MY-380F

MY-380F/W

Voltage(V/Hz)

AC 220/50  110/60

Power(W)

180

Solid Ink Roller(mm)

35×32   35×16

Printing Speed(pcs(/min)

≤300

Object Size(mm)

L:50-500 W:30-190

L:50-550 W:30-300

Max. Printing Line

T Arrange(10.5PT):11Lines (Max.10 characters/line)
R Arrange(10.5PT):8Lines(Max.8 characters/line)

Printing Size(mm)

Within 60-250

Type Size(mm)

2×1.5( 8PT )  2.5×2(9PT)  3×3(10.5PT)  4×2.5(18PT)

External Dimensions
(L×W×H)(mm)

440×345×300

440×465×300

Net Weight(Kg)

23

26
